V-TYPE Series

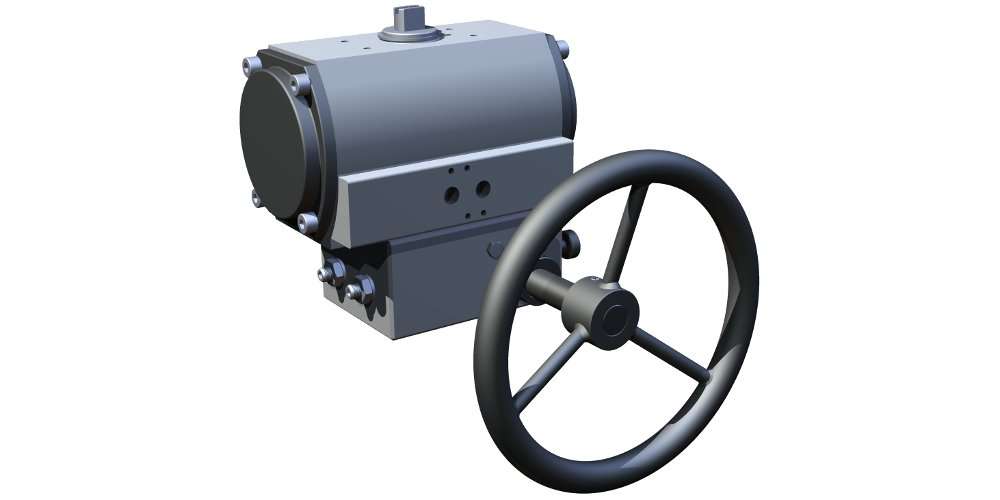

V-TYPE Rack & Pinion Actuator
V-Type actuators are designed to ensure smooth automation, durability and safety. The design is double rack and pinion that ensures constant torque output. Available in Double Acting and Spring Return configurations.
Standards & Compliance
ISO 5211 - Actuator to Valve Interface
DIN 3337 - 45° Orientation
VDI/VDE 3845 - NAMUR Standard
ATEX - Explosive Atmosphere Directive
Key Features
- Double rack and pinion design
- Constant torque output
- Double end stop adjustment
- Springs with safety disengagement
- Piston wear pad protection
- Driveshaft with double O-rings
- Body adaptor for valve interface
- Available in special corrosion versions
Technical Specifications
Pressure Range:
2-10 bar (30-150 psi)
Temperature Range:
-30°C to +100°C (-22°F to +212°F)
Drive Medium:
Air, Non-Corrosive Gas, Light Hydraulic Oil
Quality Standard:
ISO 9001:2015 certified
